3D Printed Capacitors

Parallel plate capacitors can be printed using Electrifi as the conductive material and other dielectric polymers as the separator. The capacitance scales linearly with the number of stacked layers.

3D Printed Inductors

The 3D printed 9-turn spiral inductor is able to receive wireless power from a commercial wireless phone charger to light up an LED.

3D Printed RF Filters

The fully 3D printed high-pass filter circuit consisting of a 60 pF capacitor and a 2.2 μH inductor filters out low frequencies with a cutoff frequency at approximately 7 MHz.

3D Printed Horn Antennas

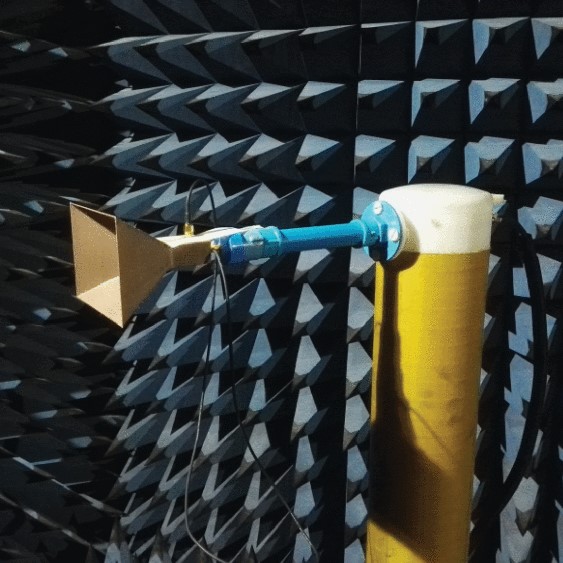

Horn antennas are not cheap. With Electrifi, you may 3D print horn antennas with a comparable performance at a fraction of the cost.

3D Printed Cavity Antennas

This hybrid metasurface cavity antenna (15 cm×15 cm×4 cm) is a low-cost option for computational microwave imaging.

3D Printed HDTV Antennas

This fractal HDTV antenna is such an example of demonstrating how Electrifi can be practically used with your 3D printer at home.

3D Printed Metamaterials

Microwave metamaterials are engineered materials designed to interact with electromagnetic waves. 3D printing with Electrifi exploits the third dimension of the design space to better achieve desired electromagnetic properties.

3D Printed Batteries

Electrifi and other functional materials are coupled to print batteries with arbitrary geometries to accommodate increasingly small and odd-shaped electronic devices.

Electroplating 3D Printed Objects

Selective deposition of copper can be achieved through electroplating of the inductive coil printed with Electrifi and PLA, resulting in a 2000x increase in surface conductivity, and thus a 1740x more efficient energy storage of the coil.

3D Printed Metasurface Antenna

We demonstrate a 3D printed holographic metasurface antenna for beam-focusing applications at 10 GHz within the X-band frequency regime.

Selective Electroplating for 3D-Printed Electronics

A hybrid process based on 3D printing followed by electroplating on highly conductive thermoplastic filament is used to manufacture 3D circuit boards and electronic packaging.

3D Printed Microstrip Transmision Line, Patch, and Pyramidal Horn Antenna

External Links

  1. P .F. Flowers, C. Reyes, S. Ye, M.-J. Kim, B. J. Wiley. "3D Printing Electronic Components and Circuits with Conductive Thermoplastic Filament". Additive Manufacturing, October 2, 2017.
  2. Y. Xie, S. Ye, C. Reyes, P. Sithikong, B.-I. Popa, B. J. Wiley, S. A. Cummer. "Microwave Metamaterials Made by Fused Deposition 3D Printing of a Highly Conductive Copper-Based Filament". Applied Physics Letters, May 1, 2017.
  3. J. Kerns. "Who’s Who in 3D Printing Electronics". Machine Design, May 20, 2017.
  4. M. Petch. "Nanotech Pioneer Brings 3D Printable Metal to Makers". 3D Printing Industry, August 3, 2016.
  5. O. Yurduseven, P. Flowers, S. Ye, D. L. Marks, J. N. Gollub, T. Fromenteze, B. J. Wiley, D. R. Smith. "Computational Microwave Imaging Using 3D Printed Conductive Polymer Frequency-Diverse Metasurface Antennas". IET Microwaves, Antennas & Propagation, December 25, 2017.
  6. J. Langston. "In First, 3-D Printed Objects Connect to WiFi without Electronics". Phys.org, December 5, 2107.
  7. S. Roy, M. B. Qureshi, S. Asif, B. D. Braaten. "A Model for 3D-Printed Microstrip Transmission Lines Using Conductive Electrifi Filament". 2017 IEEE International Symposium on Antennas and Propagation & USNC/URSI National Radio Science Meeting, October 17, 2017.
  8. C. Clarke. "Duke University 3D Prints Conductive Copper Metamaterials". 3D Printing Industry, May 5, 2017.
  9. C. Reyes, R. Somogyi, S. Niu, M. A. Cruz, F. Yang, M. J. Catenacci, C. P. Rhodes, B. J. Wiley. "Three-Dimensional Printing of a Complete Lithium Ion Battery with Fused Filament Fabrication". ACS Applied Energy Materials, September 18, 2018.
  10. J. O. Thostenson, Z. Li, C. H. J. Kim, A. Ajnsztajn, C. B. Parker, J. Liu, A. V. Peterchev, J. T. Glass, S. M. Goetz. "Integrated Flexible Conversion Circuit between a Flexible Photovoltaic and Supercapacitors for Powering Wearable Sensors". Journal of the Electrochemical Society, April 25, 2018.
  11. M.-J. Kim, M. A. Cruz, S. Ye, A. L. Gray, G. L. Smith, N. Lazarus, C. J. Walker, H. H. Sigmarsson, B. J. Wiley. "One-Step Electrodeposition of Copper on Conductive 3D Printed Objects". Additive Manufacturing, March 19, 2019.
  12. B. Jackson. "UW Students Introduce Printed Wi-Fi – Plastics, 3D Printed, Smart Sensing". 3D Printing Industry, December 6, 2017.
  13. K. Manke. "3D-Printable Material Sets Terminator’s Eyes Aglow". Duke Research Blog, October 25, 2016.
  14. F. Pizarro, R. Salazar, E. Rajo-Iglesias, M. Rodríguez, S. Fingerhuth, G. Hermosilla. "Parametric Study of 3D Additive Printing Parameters Using Conductive Filaments on Microwave Topologies". IEEE Acess, August 2, 2019.
  15. O. Yurduseven, S. Ye, T. Fromenteze, B. J. Wiley, D. R. Smith. "3D Conductive Polymer Printed Metasurface Antenna for Fresnel Focusing". MDPI Designs, September 4, 2019.
  16. N. Lazarus, S. S. Bedair, S. H. Hawasli, M.-J. Kim, B. J. Wiley, G. L. Smith. "Selective Electroplating for 3D‐Printed Electronics". Advanced Materials Technology, May 20, 2019.
